Kant Hospital Full Bed Set (2000 mm)

Home / Medical Spare Parts for Manufacturers/New Hospital Bed Side Rail Mechanism Set (4 PCS)

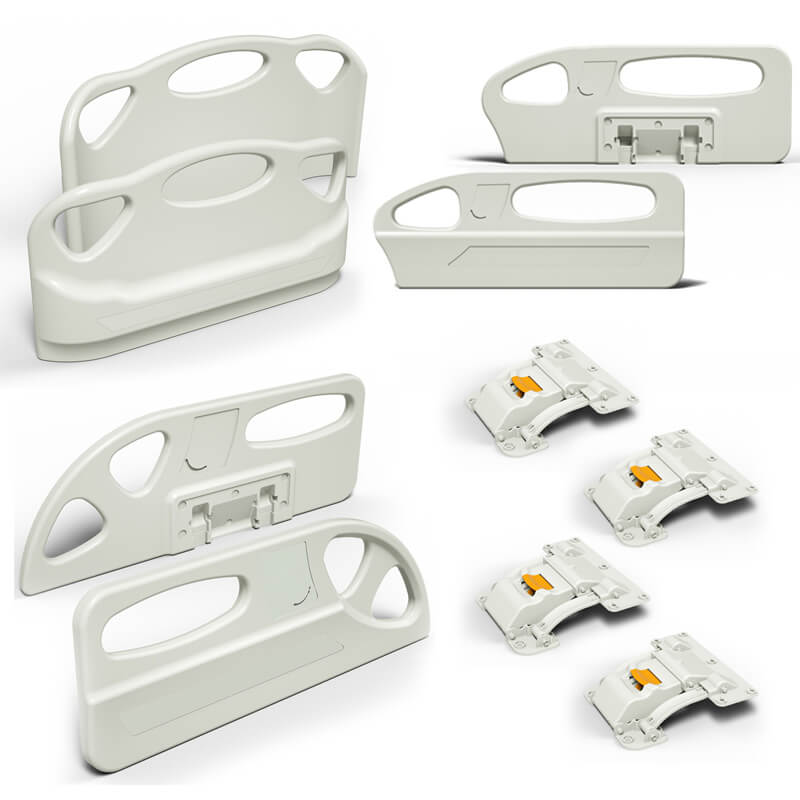

Kant Hospital Full Bed Set (2000 mm)

Product Description

Product Code

15201130065 - RAL 7035 15201130063 - RAL 9016

* RAL 9010 and RAL 9002 can be produced according to MOQ.

2 Pieces Kant Hospital Bed Head & Foot Boards
Kant Series hospital bed head & foot boards are designed according to the new electronic hospital bed standard EN 60601-2-52.Technical Specifications
  • Blow Molded, Reinforced PP (Polypropylene)
  • Antibacterial (Added Silver Ion)
  • Flame Retardant
  • Crush Resistant
  • Smooth Surface – Easy to Clean
Dimensions
  • Length: 980 mm
  • Height: 500
  • Width: 40 mm
  • Thickness: 3,5/4,5 mm
  • Weight: 2900 gr
2 Pieces Hospital Bed Foot Side Rails
Kant Series hospital bed foot side rails are designed according to the new electronic hospital bed standard EN 60601-2-52.Technical Specifications
  • Blow Molded, Reinforced PP (Polypropylene)
  • Antibacterial (Added Silver Ion)
  • Flame Retardant
  • Crush Resistant
  • Smooth Surface – Easy to Clean
Dimensions
  • Length: 932 mm
  • Height: 345 mm
  • Width: 36 mm
  • Thickness: 3,5 mm. to 4,5 mm.
  • Weight: 1800 gr.
2 Pieces Hospital Bed Head Side Rails
4 pieces Kant Series hospital bed side rail boards are designed for the new electronic hospital bed standard EN 60601-2-52.Technical Specifications
  • Blow Molded, Reinforced PP (Polypropylene)
  • Antibacterial (Added Silver Ion)
  • Flame Retardant
  • Crush Resistant
  • Smooth Surface – Easy to Clean
Dimensions
  • Length: 925 mm
  • Height: 345 mm
  • Width: 36 mm
  • Thickness: 3,5 mm. to 4,5 mm.
  • Weight: 1800 gr.
4 Pieces Hospital Bed Side Rail Mechanisms
4 pieces hospital bed side rail mechanism set is designed for the new electronic hospital bed standard EN 60601-2-52 and in accordance with EN 60601-1 electronic standard of hospital beds. PATENTED Mechanism has an innovative piston which provides slow lift down and easy lift up to caregivers.Technical Specifications
  • Aliminum Injection, Reinforced Aliminum
  • Epoxy Powder Coated (Standard RAL 7035 and RAL 9010)
  • High Weight Load Capacity (Tested by 150 kg.)
  • Patented Piston Technology which Works into the Main Frame as Closed System
  • Smooth Surface – Easy to Clean
